engine recovered, need info :)
Hi all, our need info of this BF-109, recover near Bondeno (Ferrara) Italy.
Shot Down on June - July 1944   part of fusolage  numbers on the engine  number in the wing  Engine Ciao best Regards to all and thanks for any info
|
|
#2
15th October 2006, 22:54
|
|||
|
|||
|
Re: engine recovered, need info :)
Ciao Fabio! Motor looks to be a 605A. Big impact!
Best wishes, SM
|
|
#4
15th October 2006, 22:59
|
|||
|
|||
|
Re: engine recovered, need info :)
Fabio! The motor dataplate should be fitted above the Left main motor mount (at the top, in the middle). Otherwise, the motor serial number is stamped on every main-bearingcap.
Best wishes, SM
|
|
#6
16th October 2006, 10:03
|
|||
|
|||
|
Re: engine recovered, need info :)
Ciao Fabio!
No, those are batch numbers and parts numbers. The 9-605.301-001 shows this to be a 605A part. However, could also be from a 605AM/AS/ASM as they are the same, but only built after spring 1944 or later. If you look at your picture img432/9 (engine), the dataplate should be on the flat top of the engine mounting at the top of the picture but on the other side of the motor (ie top lefthandside, centre). Also, the motor number is stamped on the top front edge of the crankshaft cover, just behind the exposed reduction gear pinion. HTH, SM
|
|
#8
16th October 2006, 20:14
|
|||
|
|||
|
Re: engine recovered, need info :)
Ciao Fabio! Nearly, the position of the data plate should be on the top, where the red arrow points.
Best wishes, SM http://img520.imageshack.us/img520/1...a672uo5hb4.jpg
|
|
#9
16th October 2006, 21:26
|
||||
|
||||
|
Re: engine recovered, need info :)
There's no data plate on the top:

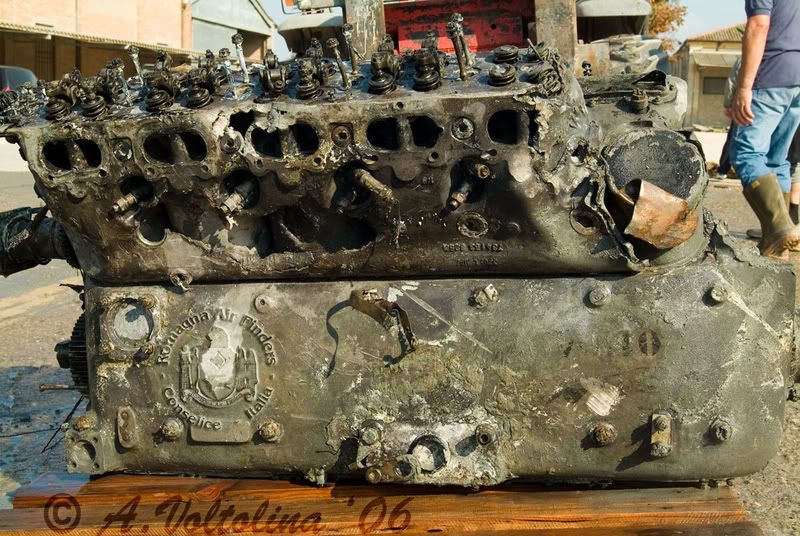

http://i83.photobucket.com/albums/j3...05bondeno2.jpg http://i83.photobucket.com/albums/j3...05bondeno1.jpg http://i83.photobucket.com/albums/j3...605bondeno.jpg It's clear,on the right side of the engine,five black numbers( 01104 I think,others are missing) http://i83.photobucket.com/albums/j3...articolare.jpg Alessandro
__________________
Alessandro Voltolina Twitter : @Volto71 FB: https://www.facebook.com/alessandro.voltolina.7
|
|
#10
16th October 2006, 22:21
|
|||
|
|||
|
Re: engine recovered, need info :)

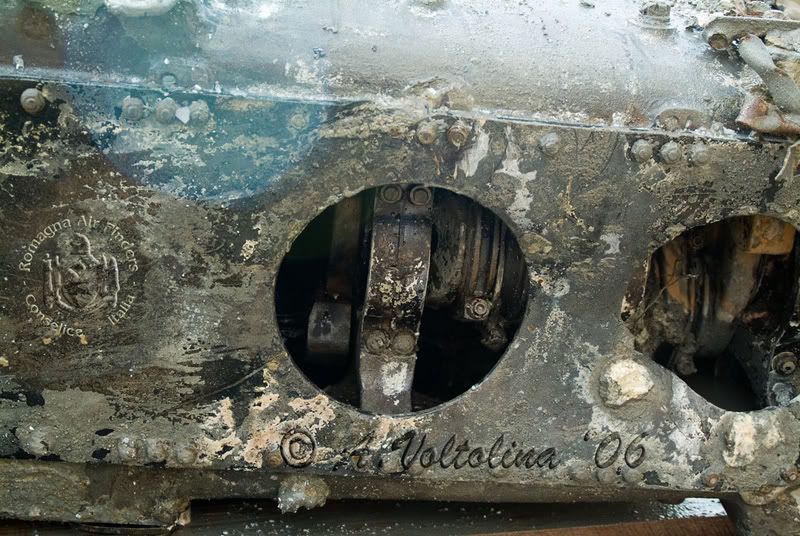

Hi Alessandro! The dataplate should be under the the "'06" of your signature on your first picture. It may be hidden by dirt or missing from the crash. Otherwise, the main-bearing caps all have the motor number stamped on each one. If you clean them you can see them. The painted numbers are factory batch codes or dates. The three-letter manufacturer code is visable on some castings-needs decode.
Great pictures, hope the dataplate is there! Best wishes, SM
|
|
|
|
